A red dot is the simpler, lighter, faster optic for close and mid-range shooting. An LPVO (low power variable optic) gives you magnification for longer shots, but it's heavier and asks more of your head position. Choose by the distances you actually shoot, not the ones you might someday.
What each optic is

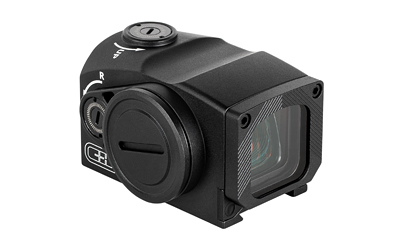

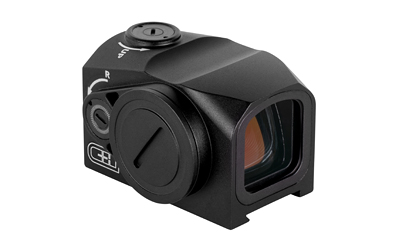

A red dot is a non-magnified sight. It projects an illuminated dot (or a dot with a ring) onto a lens. You put the dot on the target and shoot. Non-magnified sights come in three common types:

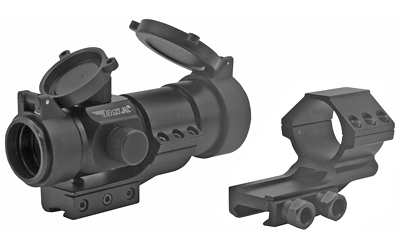

- Tube style: the emitter sits inside a short, enclosed tube.

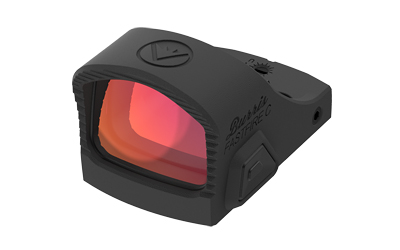

- Reflex or open style: a single lens window, often smaller and lower profile.
- Holographic: a laser-illuminated reticle recorded in the window itself. Usually larger and heavier than a red dot, with shorter battery life.
Dot size is listed in MOA (minute of angle). A smaller dot covers less of the target. A larger dot is easier to pick up fast.
An LPVO is a riflescope that starts at 1x (or very close to it) and zooms up to a higher power. Common ranges are 1-4x, 1-6x, 1-8x and 1-10x. At the bottom setting you use it much like a red dot. Turn it up and you can see and aim at smaller targets farther away.
Speed and field of view
A red dot is built for speed. You can shoot with both eyes open and your head doesn't need to be in one exact spot. Most red dots have very little parallax, so the dot stays close to your point of aim even when your head isn't perfectly centered behind the window. That makes it forgiving when you're moving, shooting from an awkward position or switching between targets.
An LPVO at 1x can be quick too, and many shooters run them with both eyes open. The difference is the eyebox: the area behind the scope where your eye has to be to see a full, clear picture. An LPVO has a set eye relief (distance from your eye to the lens) and a smaller eyebox than a red dot. That eyebox usually gets tighter as you turn the magnification up. Get your head out of place and you'll see a dark ring or lose the picture.
What this means for you: on a fast, close course, the red dot asks less of your fundamentals. On a prone shot at distance, the LPVO's stricter head position is less of a problem because you have time to settle in.
Magnification and distance
This is the real dividing line.
- Most shots inside a typical indoor or short outdoor range: a red dot covers it.
- Regular shots at longer outdoor distances, or small targets: magnification helps you see the target and refine your aim. That's what an LPVO is for.
A red dot doesn't make the target bigger. The dot also covers part of the target, so precise shots at distance get harder. Higher magnification on an LPVO lets you see where you're hitting and place shots more exactly.
There's a middle path: a red dot with a magnifier behind it. The magnifier usually flips to the side on its mount when you don't need it. You get red dot speed up close and some magnification when you want it. The tradeoff is more parts on the rail, and the magnifier enlarges the dot along with the target.
Reticles and focal plane
Red dots usually have a simple reticle: a dot, or a dot and circle. There's not much to learn.
LPVO reticles often include holdover marks for bullet drop and sometimes wind. Here's where focal plane matters:
- First focal plane (FFP): the reticle grows and shrinks with magnification. Holdover marks stay accurate at every power.
- Second focal plane (SFP): the reticle stays the same size as you zoom. Holdover marks are only correct at one magnification, which the manufacturer states (often the highest power).
Neither is better across the board. SFP reticles stay easy to see at 1x. FFP reticles let you use holds at any power. Read the manufacturer's manual for your reticle so you know which marks mean what.
Many LPVOs have an etched glass reticle with illumination on top. If the battery dies, the etched reticle is still there, just not lit. Check the manufacturer's specs for your model, because designs vary.
Weight, size and batteries
A red dot is usually lighter and smaller than an LPVO and its mount. On a carbine you carry a lot, that difference adds up and changes how the rifle balances.
An LPVO is a full scope with a longer body, plus a scope mount. It puts more weight up top and farther forward.
Both may need batteries for illumination. Battery life varies a lot by model and brightness setting, so go by the manufacturer's published figure and keep a spare on hand.
Mounting on an AR
The optic is only as good as its mount.
Red dots mount on the upper's rail, either directly or on a riser. Height matters. You'll hear two terms:
- Absolute co-witness: your iron sights line up in the middle of the optic window.
- Lower 1/3 co-witness: your irons sit in the lower part of the window, leaving more clear glass above them.
Check the optic maker's listed height and choose a mount that puts the dot where your head naturally falls on the stock.

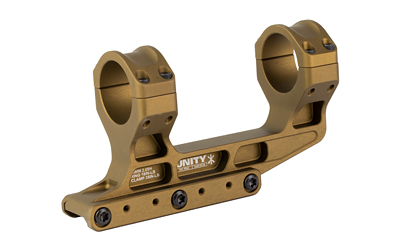

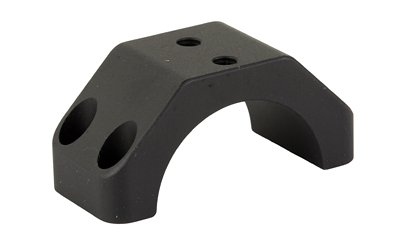

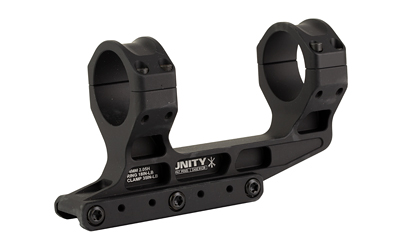

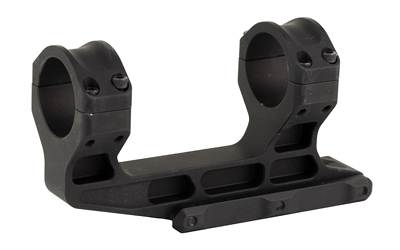

LPVOs use scope rings or a one-piece mount sized to the scope's tube diameter (commonly 30mm or 34mm). Match the mount to your scope's tube. Many AR shooters use a cantilever mount, which pushes the scope forward so you can get proper eye relief without crowding the stock. Torque ring screws to the mount maker's spec, not by feel.
If you have astigmatism
With astigmatism, a dot can look like a starburst or a smear instead of a crisp point. An etched reticle, like an LPVO at 1x or a prism sight, often looks sharper. If you can, look through an optic in person before you buy.
How to choose
Ask yourself three questions:
- How far do you usually shoot? Mostly close: red dot. Regularly far, or small targets: LPVO.
- How do you shoot? Lots of movement and fast transitions favor a red dot. Slower, deliberate shots from steady positions suit an LPVO.
- How much weight will you carry? If light and handy matters most, a red dot wins on size.
If you want a bit of both, look at a red dot and magnifier pair, or an LPVO with a low bottom setting you're comfortable running at 1x.
Next step
Browse red dots, LPVOs, magnifiers and mounts in Optics, Sights & Mounts. Not sure a mount or ring size fits your optic and upper? Ask us before you order.
